PROBEAM BLACK M42

The special tool for beams with residual stress

  Our solution for
  • Profiles and beams
  • Single, layer and bundle cuts for pipes and beams in
    general steel construction and industry
  Advantages
  • No binding in the cutting channel
  • Minimal tooth chipping, extremely long service life
  • Vibration resistance
  • Optimal surface quality
  • Coating provides higher performance and longer service life
  Features
  • Reinforced tooth back, extended HSS welding zone
  • Stepped tooth set
  • Coating
No.  Width x Thickness ZpZ / tpi
765     5700 7900 8100 2600
  mm inches 5 / 7 7 / 9 8 / 11 12 / 16
013060  13 x 0,6 1/2 x .025     P
020090  20 x 0,9 3/4 x .035     P P
027090  27 x 0,9 1 1/16 x .035 P P P P
034110  34 x 1,1 1 3/8 x .042 P   P
041130  41 x 1,3 1 5/8 x .050 P
Contact length (mm) 40 – 90 25 – 65 10 – 60 < 20

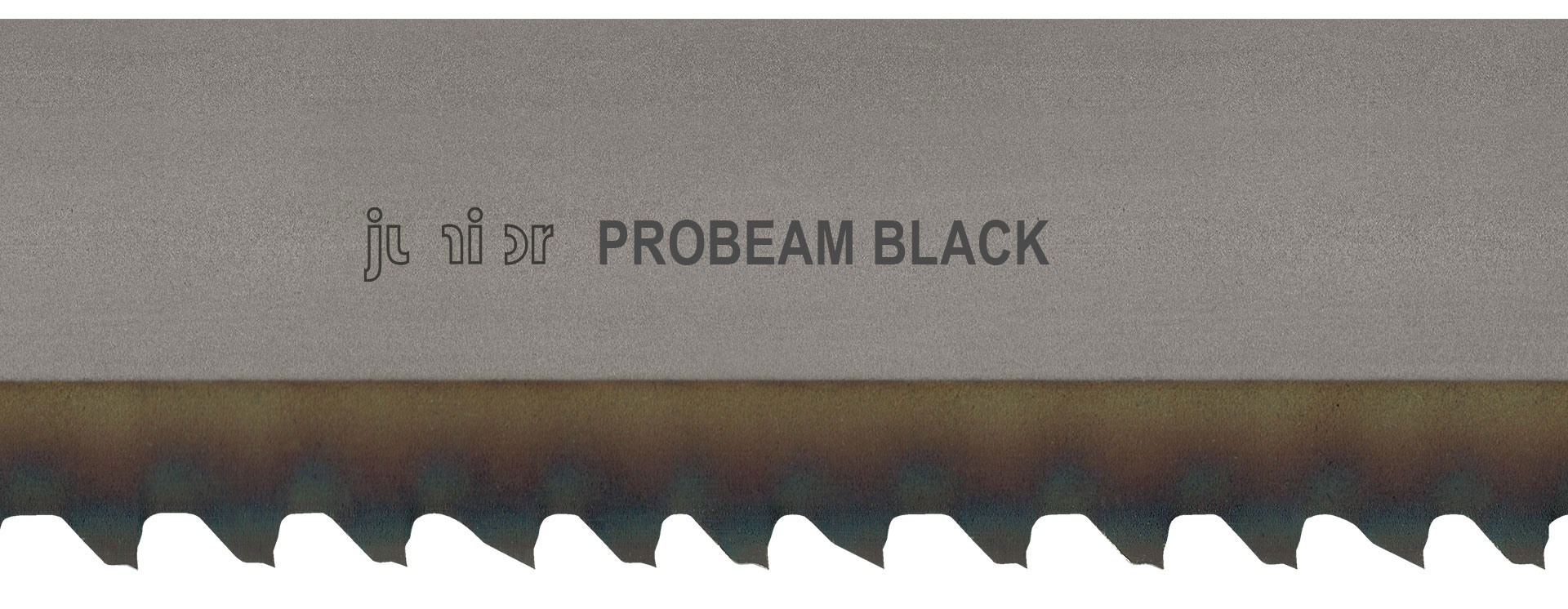

Sample-No.   765      034    110   4600     rot Quality   Blau Width x Thickness   Gruen Tooth pitch
   Probeam
BLACK		  34 x 1,1 4/6 ZpZ
